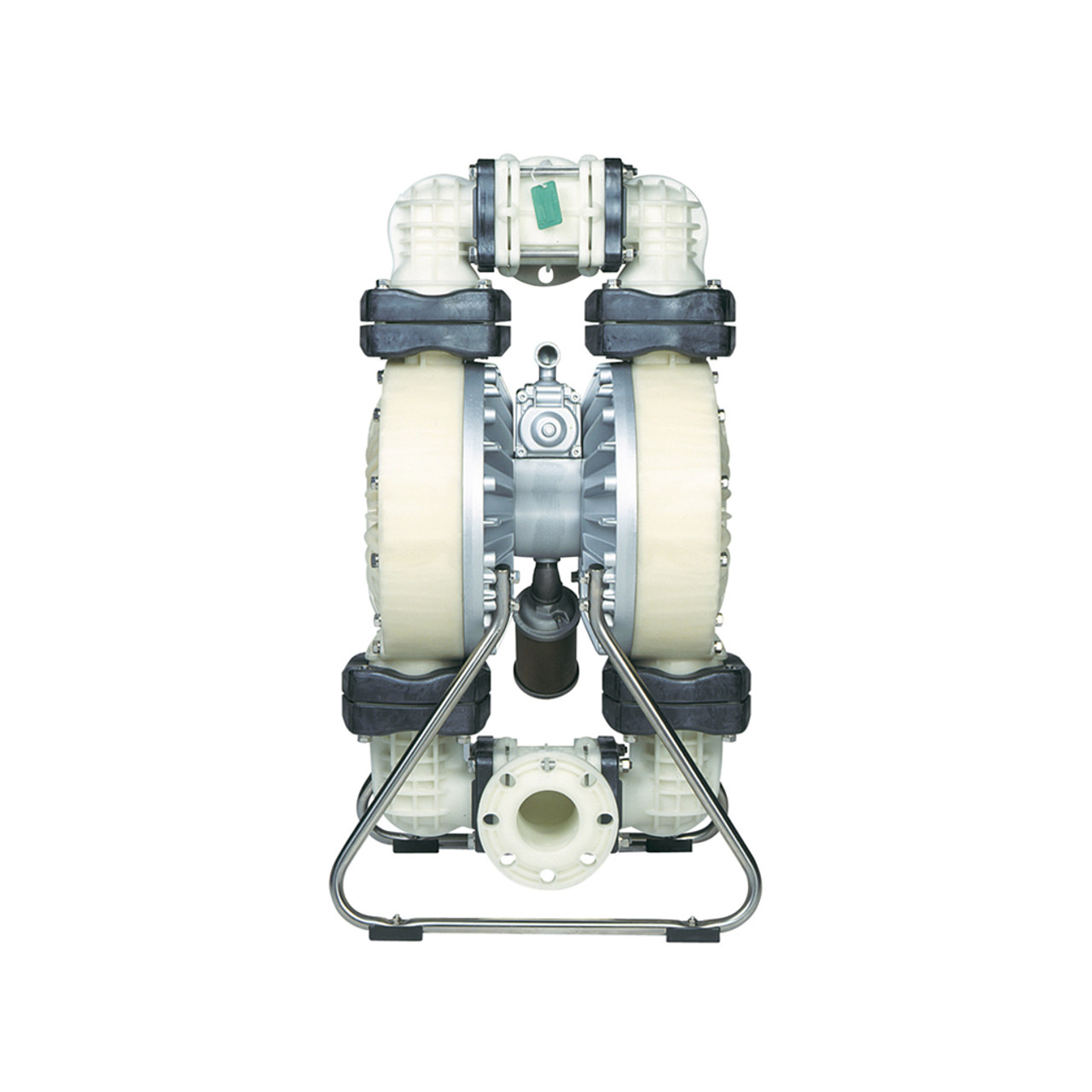

Yamada NDP5080 3" Diaphragm Pump Polypropylene

Port Dimensions (215 GPM Max.) Intake & discharge connection: Polypropylene (PPG) 3" ANSI B16.5 #150 Aluminum (ADC-12) 3" ANSI B16.5 #150 (with tapped 3" Female NPT) Stainless Steel (316) 3" ANSI B16.5 #150 or 3" Female NPT Cast Iron 3" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Neoprene 180°F (82°C) Buna N 180°F (82°C) EPDM 212°F (100°C) Hytrel® (TPC-ET) 248°F (120°C) Santoprene® (TPE) 212°F (100°C) Viton® fluoroelastomer 248°F (120°C) Teflon® (PTFE) 212°F (100°C) Air Supply Pressure (All Models) 20–100 PSI (1.4–7 kfg/cm) Discharge Volume Per Cycle Rubber diaphragm: 2.26 gallons (8.57 liters) PTFE diaphragm: 1.0 gallons (3.8 liters) Maximum Cycles Per Minute Rubber diaphragm: 95 PTFE diaphragm: 160 Maximum Size Solid 13/32" (10 mm) Maximum Dry Suction Lift Rubber-fitted pump capability: 19-feet Dimensions: 22.83" W × 41.10"H Net Wt.: 162 lbs. (73.5 kg) Shipping Wt.: 177 lbs.
