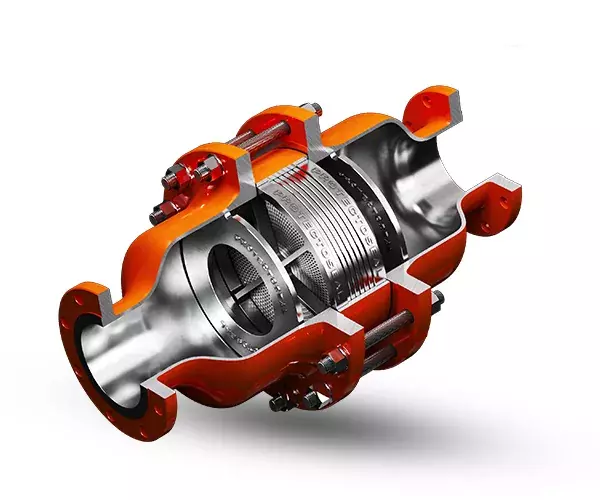

PROTECTOSEAL ARRESTER UCA 8" IN LINE DETONATION GAS GROUP D and IIA1 and iia ISO 16852

UCA (In Line Detonation, Gas Group D and IIA1 and IIA) Certification: EN ISO 16852, ATEX Directive 2014/34/EU Connection Size: 8", 200 mm Connection Type: ANSI 150lb. RF flange Body and Element Housing Material: 316 Stainless Steel Element Bank Size: 16", 400 mm Element Material: 316/316L Stainless Steel Max Operating Temperature: 140 F (60 C) Operating Pressure: 16 psia (1.10 bara) Body Modification: No Body Modification Finish/Paint: Natural, Unpainted Gasket/Seal: CNAF Fasteners: 316 Stainless Steel Ports/Taps: 1/2" - FNPT x2 - One on each end on same side ** UNIT = 273 kg. (749mm X 597mm X 597mm)
