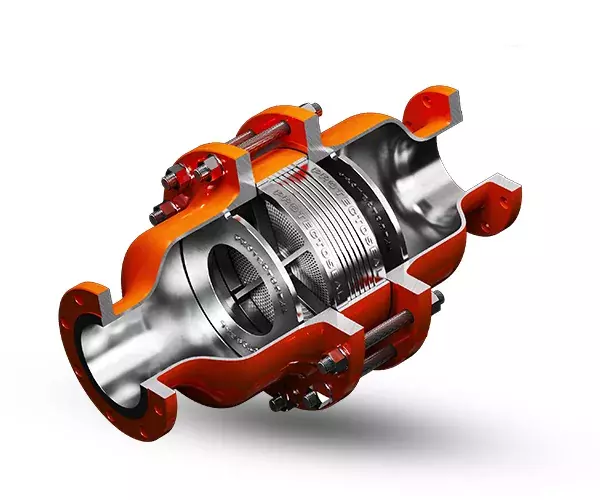

PROTECTOSEAL ARRESTER UCA 3" IN LINE DETONATION GAS GROUP D and IIA1 and iia ISO 16852

UCA (In Line Detonation, Gas Group D and IIA1 and IIA) Certification: EN ISO 16852, ATEX Directive 2014/34/EU Connection Size: 3", 80 mm Connection Type: Mates with ANSI 150lb. RF flange Body and Element Housing Material: 316 Stainless Steel Element Bank Size: 6", 150 mm Element Material: 316/316L Stainless Steel Max Operating Temperature: 140 F (60 C) Operating Pressure: 17.4 psia (1.20 bara) Body Modification: No Body Modification Finish/Paint: Natural, Unpainted Gasket/Seal: CNAF Fasteners: 316 Stainless Steel Ports/Taps: 1/2" - FNPT x2 - One on each end on same side ** UNIT = 54 kg. (442mm X 280mm X 280mm)
