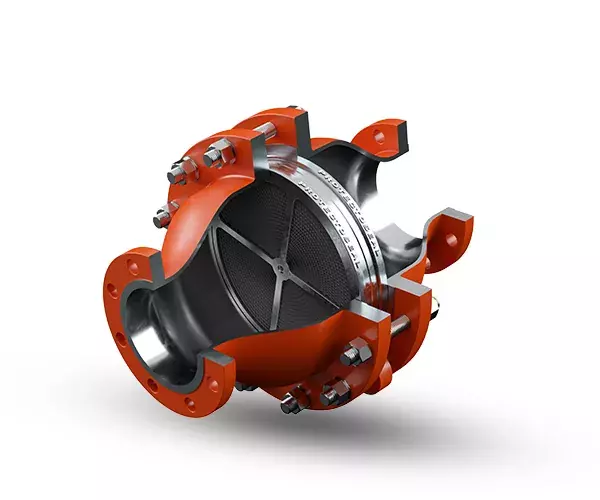

PROTECTOSEAL ARRESTER LCA 8" IN LINE DEFLAGRATION GAS GROUP D and IIA1 and iia ISO 16852

LCA (In Line Deflagration, Gas Group D and IIA1 and IIA) Certification: EN ISO 16852, ATEX Directive 2014/34/EU Connection Size: 8", 200 mm Connection Type: Mates with ANSI 150lb. RF flange Body and Element Housing Material: 316 Stainless Steel Element Bank Size: 16", 400 mm Element Material: 316/316L Stainless Steel Max Operating Temperature: 140 F (60 C) Operating Pressure: 17.4 psia (1.20 bara) Body Modification: No Body Modification Finish/Paint: Natural, Unpainted Gasket/Seal: CNAF Fasteners: 316 Stainless Steel Ports/Taps: 1/2" - FNPT x2 - One on each end on same side L/D Ratio (Length): 50 (10m.) ** UNIT = 190 kg. (450mm X 595mm X 595mm
