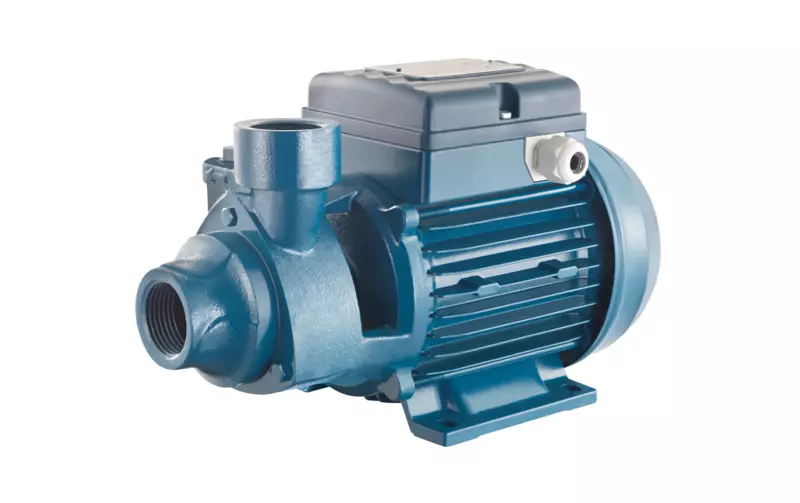

PENTAX WATER PUMP 0.5HP PM45 8L PRESSURE TANK AND PRESSURE SWITCH WITH 5 WAY GUAGE
Pump body: cast iron, bronze (45BR)
Motor bracket: cast iron, cast iron or bronze (45BR); aluminum with inserto AISI304
Impeller: brass
Seal: ceramic-graphite-NBR
Pump shaft end: steel AISI 416
Ambient temperature: 0 - 90 °C
Pump body gasket: max 6 bar (45,50)
max 8 bar: (65, 80)
max 9 bar: (90)
Motor: 2 poles induction motor3~ 230/400V-50Hz
1~ 230V-50Hz
Insulation class:F
Protection degree: IPX4
Non-returnable
SKU - PENTAX-PM45
TTD1,295.00
In stock:
1
Share:
Product Details
| MODEL 1 | HP | kW | FLOW RATE (l/min) | H (m) | |
|---|---|---|---|---|---|
| PM 45 | 0.5 | 0.37 | 5 ÷ 40 | 35 ÷ 5 |
