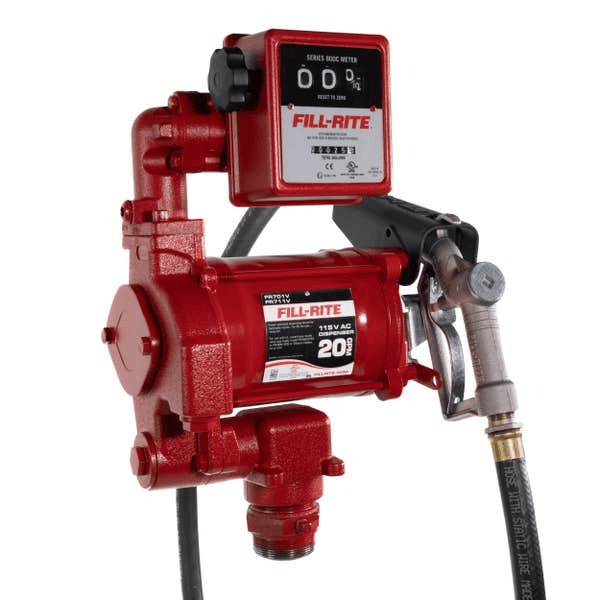

FILL RITE FR701V 115V AC 20GPM FUEL TRANSFER PUMP WITH METER & NOZZLE

The FR701V model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components. Max Flowrate 20 GPM / 75 LPM Power Type 115V AC Compatible Fluids Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents Inlet Size / Connection / Thread 1.25 " / Female / NPT Outlet Size / Connection / Thread 0.75 " / Female / NPT Mounting Size / Thread / Type 2" / NPT / Bung Mount Duty Cycle (min) 30 min on / 30 min off Power Source -- Motor Power (HP) 0.33 Max Current (A) 5.5 A Thermal Protection Switch Yes Self Priming Yes Suction Lift (ft.) 15 ' Dry Vacuum (in. Hg) 12 Operating Temperature Range (°F) -- Discharge Head (ft) 53 ' Strainer Mesh Size (Micron) 40 x 40 x .010" Max Discharge Pressure (PSI) 23 PSI Viscosity Range (cSt) 0.38 - 2.4 Repeatability (+/- %) 0.38 % Pulse Rate -- Accuracy (+/- %) 1 % Display Digits 3 Display Type Mechanical Battery Quantity -- Battery Size -- Battery Type -- Batteries Included -- Batteries Required -- AC Frequency (Hz) 60
