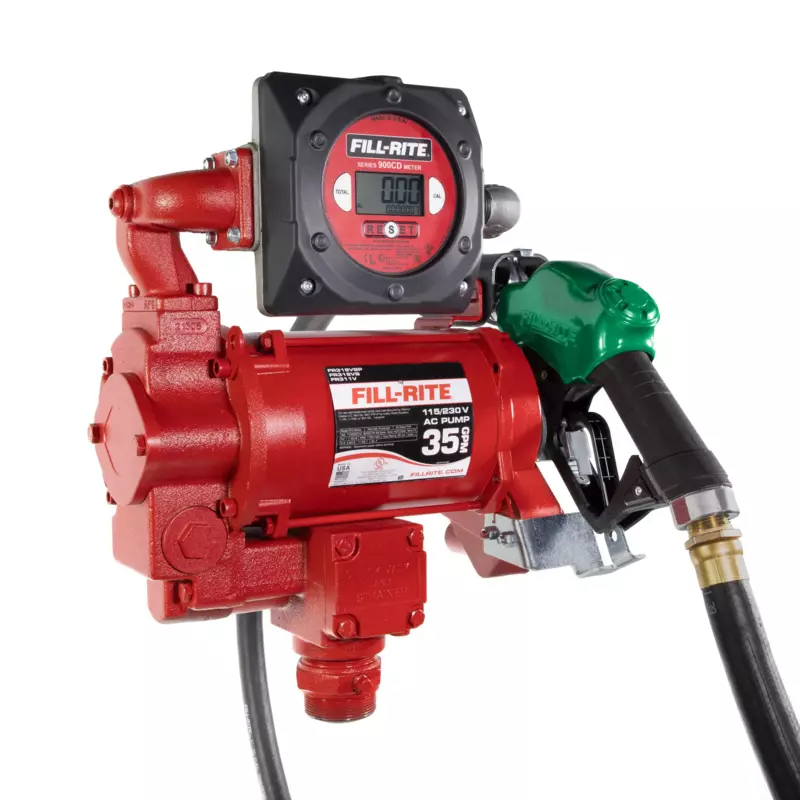

FILL RITE 115/230V AC 35 GPM Fuel Transfer Pump with Meter & Nozzle
The FR319VB model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle and installation components.
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Power Type | 115V/230V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20 |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.75 |
| Max Current (A) | 9.8 A (115V) / 4.9 A (230V) |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 18 ' |
| Dry Vacuum (in. Hg) | 14 |
| Operating Temperature Range (°F) | -13 to 150°F |
| Discharge Head (ft) | 60 ' |
| Strainer Mesh Size (Micron) | 40x 40 x .008” |
| Max Discharge Pressure (PSI) | 26 PSI |
| Viscosity Range (cSt) | 0.5 - 5.5 |
| Repeatability (+/- %) | 0.25 % |
| Pulse Rate | -- |
| Accuracy (+/- %) | 1.25 % |
| Display Digits | 4 |
| Display Type | LED |
| Battery Quantity | 2 |
| Battery Size | AA |
| Battery Type | -- |
| Batteries Included | Yes |
| Batteries Required | Yes |
| AC Frequency (Hz) | 50/60 |
Non-returnable
SKU - TUT-FR319VB
TTD39,500.00
In stock:
0
Share:
Product Details
| Additional Accessories | Nozzle Boot, 2" Tank Bung Adapter, PTFE Tape Roll, 1" NPT Street Elbow, (4) Locking Nuts, (4) Fasteners, T-25 Torx Wrench, Check Valve Cover |
|---|---|
| Static Wire | No |
| Ground Wire | -- |
| Cable Length (ft) | -- |
| Cable Gauge (GA) | -- |
| Cable Connection | Bare Leads |
| Filter | -- |
| Filter Function | -- |
| Suction Pipe | None |
| Suction Hose | None |
| Pipe Diameter (in.) | -- |
| Discharge Hose | 1” X 18’ UL Listed Hose with Static Ground Wire |
| Nozzle | 1” Ultra Hi-Flow Automatic Diesel Nozzle (Green) |
| Swivel | None |
| Swivel Type | -- |
| Swivel Thread Type | -- |
| Swivel Size | -- |
| Pulser | -- |
| Anti-Siphon | -- |
| Meter | 900CD Digital Meter |
| Batteries Included | Yes |
| Batteries Required | Yes |
