Decking Pan 0.96mm or 20GA 27" Width

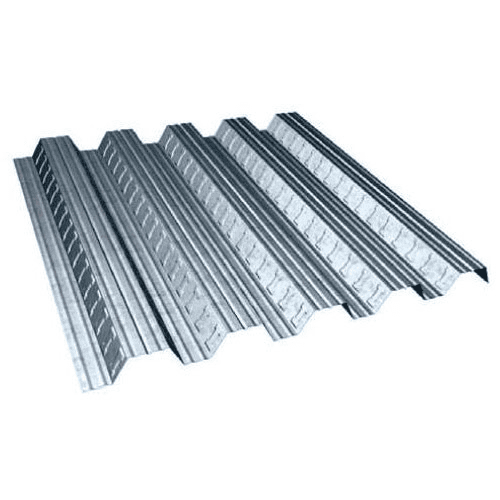

The LTR 914 Steel Deck Pan by Lifetime Solutions is a high-performance structural decking system ideal for concrete floor slabs and composite deck construction. Designed using the 27" Hayes Post Cut System, these steel decking pans provide maximum strength, superior bonding, and consistent coverage. Precision-formed with male-female hook-type side laps for secure connections and faster installation.
LTR Deck Pans are manufactured from premium galvanized steel and meet ASTM standards for durability and reliability. Custom lengths are available to suit your project needs.
Non-returnable
Out of stock
TTD28.00
Share:
Product Details
| Attribute | Details |
|---|---|
| Deck Type | LTR 914 Deck Panel |
| Base Metal Thickness | 0.96 mm or 20 GA |
| Yield Strength | 35,000 lbs/sq. inch |
| Tensile Strength | 50,000 lbs/sq. inch |
| Zinc Coating Mass | G90 (Z180) Zinc Only |
| Hot Dipped Galvanize | Conforms to ASTM A 924 |
| Galvanized Coating | According to ASTM A 653 |
Decking Dimensions & Design:
| Specification | Details |
|---|---|
| Effective Cover | 27" (670 mm) |
| Side Lap Connection | Male-Female Hook Type Joint |
| Embossment | Ridges for enhanced concrete bonding |
| Profile Features | Post Cut System, Secure Lap Hook |
| Custom Lengths | Available upon request |
Applications:
Composite slab construction
Commercial and industrial buildings
Floor deck reinforcement systems
