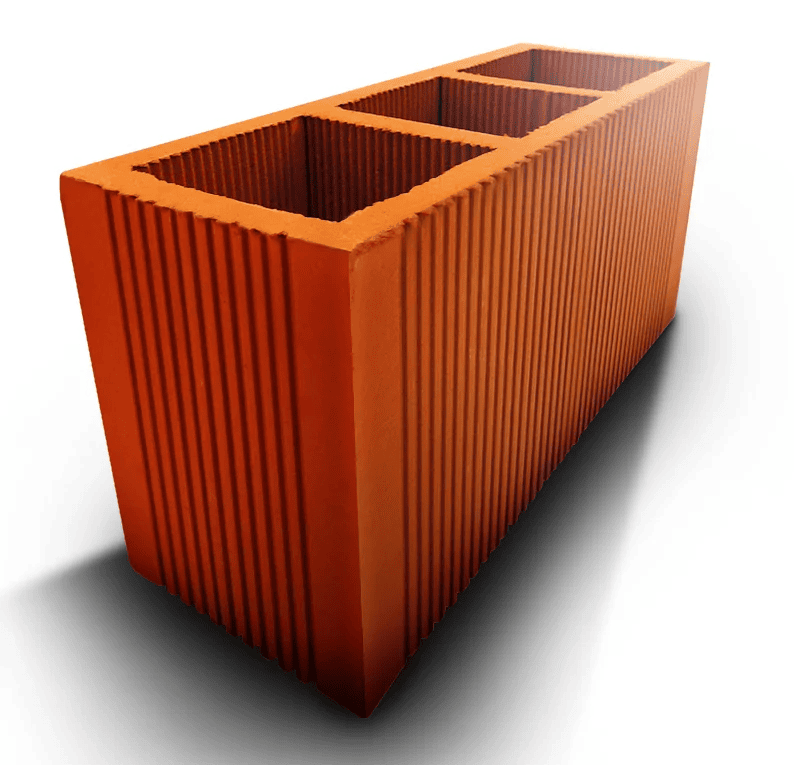

6” vertical core block ideal for load bearing applications such as building foundations and external perimeter walls.

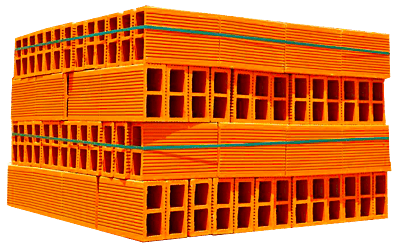

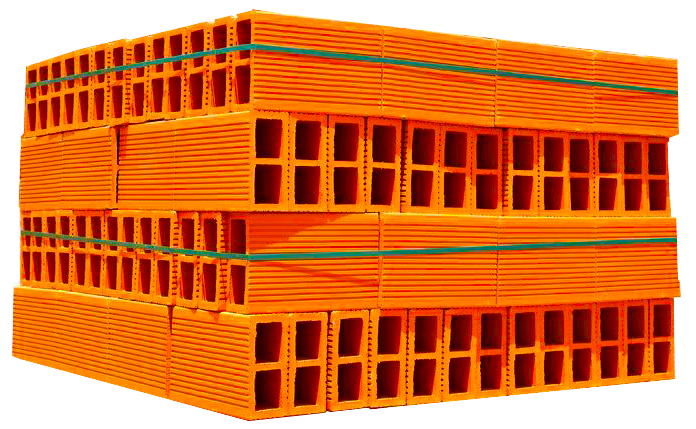

*Nominal Size: 6” x 8” x 16” (see description for further information) Actual Size: (140mm x 190mm x 390mm) Blocks per pallet: 168
*Nominal Size: In manufacturing, a nominal size or trade size is a size “in name only” used for identification. The nominal size may not match any dimension of the product, but within the domain of that product the nominal size may correspond to a large number of highly standardized dimensions and tolerances.
Non-returnable
Out of stock Out of stock
TTD7.23 - TTD8.30
TTD8.30
TTD7.23
Quantity
Select Quantity
Share :
Product Details
Specific Clauses
Acceptance Criteria
Classification
Grade – MW, Type- HBS , Class- H60V
Weathering Index
N/A
Compressive Strength
Min. Av. of five (5) samples 20.2N/mm². Individual 17.2 N/mm²
Absorption
Max. Av. of five (5) samples 17 %. Individual 20 %
Face & End Shell Thickness
< 101 mm unit Min. 17 mm for both Face & End shell thickness. For 150 mm unit Min.19 mm for both Face & End Shell thickness.
Dimensions
≤ 102 mm (±4mm) >102mm to ≤ 152mm (5mm)
Warpage
≤204mm (3mm),>204mm to ≤ 306mm (5mm) >306 to ≤408 (7mm)
Dimensions
16 × 8 × 6 in
TTBS Standards
CTTS 587: 2005
Size
6” x 8” x 16” (140mm x 190mm x 390mm)
Weight
9.00 ± 0.50kg
Blocks per pallet
168 blocks
Compressive Strength
22.7 N/mm²
Water Absorption
9.6%
