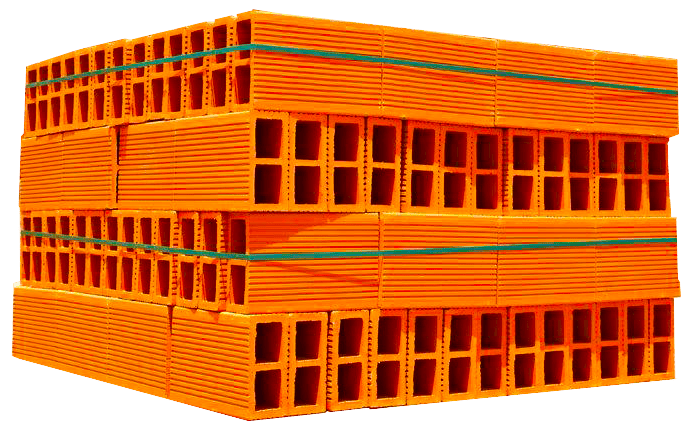

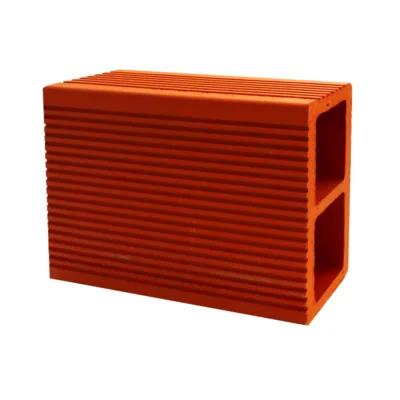

Classic Red Clay Block Horizontal Core 4X8X12
*Nominal Size: 4” x 8” x 12” (see description for further information)
Actual Size: (90mm x 199mm x 300mm)
Blocks per pallet: 312
Actual Size: (90mm x 199mm x 300mm)
Blocks per pallet: 312
*Nominal Size: In manufacturing, a nominal size or trade size is a size “in name only” used for identification. The nominal size may not match any dimension of the product, but within the domain of that product the nominal size may correspond to a large number of highly standardized dimensions and tolerances.
Non-returnable
TTD6.47
Quantity:
Share:
Product Details
Exceeds local standards, TTS 588:2015
| Specific Clauses | Acceptance Criteria |
| Compressive Strength | Min. Av. of five (5) samples 4.8 N/mm². Individual 3.4 N/mm² |
| Absorption | Max. Av. of five (5) samples 12 %. Individual 14% |
| Cell Requirements | For 100mm width. Minimum # cells in the wall direction = 1. |
| Shell & Web thickness | 7mm ( minimum) |
| Warpage | ≤200mm (max. warpage = 4mm) 200mm -300mm (max. warpage = 6mm). |
