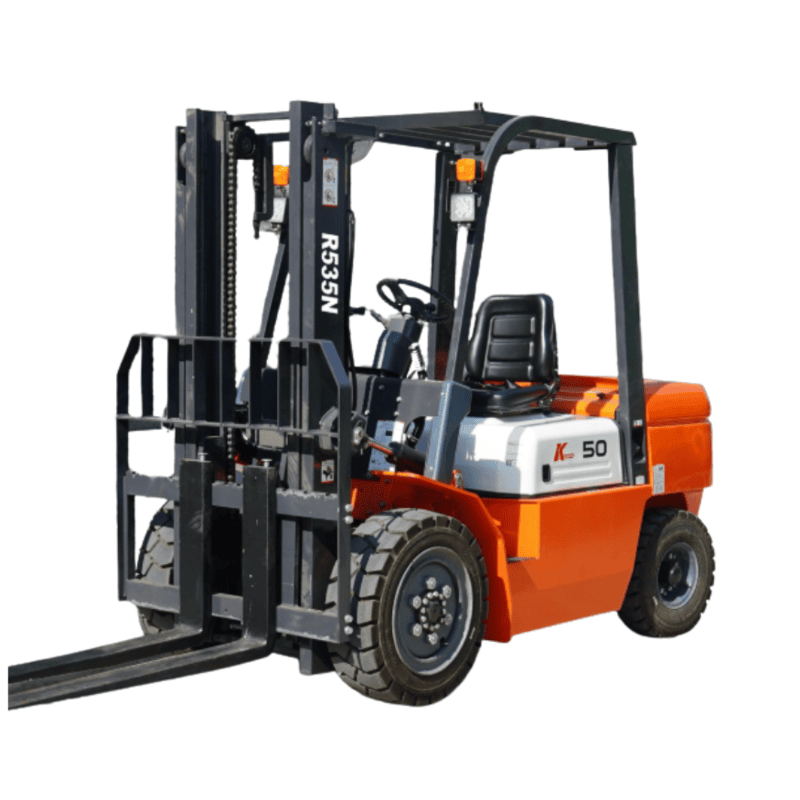

5TON DIESEL RIPPA FORKLIFT R550N
Power. Precision. Performance.
The 5 Ton Diesel Forklift is engineered for heavy-duty lifting in the most demanding industrial environments. Built with a robust diesel engine, this forklift delivers exceptional torque and reliability, ensuring you can handle large, heavy loads with ease. Its durable construction, ergonomic controls, and excellent stability make it the perfect choice for warehouses, ports, construction sites, and manufacturing plants.
Whether you’re moving palletized goods, steel beams, or machinery, this forklift combines strength, efficiency, and operator comfort to keep your operations running smoothly and productively.
Key Features
High Load Capacity: 5 Ton rated capacity for heavy lifting applications.
Durable Diesel Engine: Powered by a 4D35ZG31/Cummins engine for maximum reliability.
Versatile Mast Movement: 6–12° mast inclination for flexible load handling.
Ergonomic Design: Spacious operator area and wide visibility for safer operation.
All-Terrain Ready: Pneumatic tires and high ground clearance for varied job sites.
Product Details
Specification Detail Model R550N Rated Lifting Capacity 5,000 kg (5 Ton) Lift Height 3,000 mm Mast Inclination Angle 6–12° Gradability (Fully Loaded/Empty) 15% / 20% Overall Dimensions (excl. forks) 3,280 mm Maximum Height During Operation 4,275 mm Free Lifting Height 150 mm Overhead Guard Height 2,300 mm Fork Length 1,220 mm Bifurcation Width 1,200 mm Front Tire 300–15 Rear Tire 7.00–10 Wheelbase 2,100 mm Ground Clearance 215 mm Engine Model 4D35ZG31 / Cummins Engine Power 61 kW (60 kW)
| Specification | Detail |
|---|---|
| Model | R550N |
| Rated Lifting Capacity | 5,000 kg (5 Ton) |
| Lift Height | 3,000 mm |
| Mast Inclination Angle | 6–12° |
| Gradability (Fully Loaded/Empty) | 15% / 20% |
| Overall Dimensions (excl. forks) | 3,280 mm |
| Maximum Height During Operation | 4,275 mm |
| Free Lifting Height | 150 mm |
| Overhead Guard Height | 2,300 mm |
| Fork Length | 1,220 mm |
| Bifurcation Width | 1,200 mm |
| Front Tire | 300–15 |
| Rear Tire | 7.00–10 |
| Wheelbase | 2,100 mm |
| Ground Clearance | 215 mm |
| Engine Model | 4D35ZG31 / Cummins |
| Engine Power | 61 kW (60 kW) |
