Macnaught

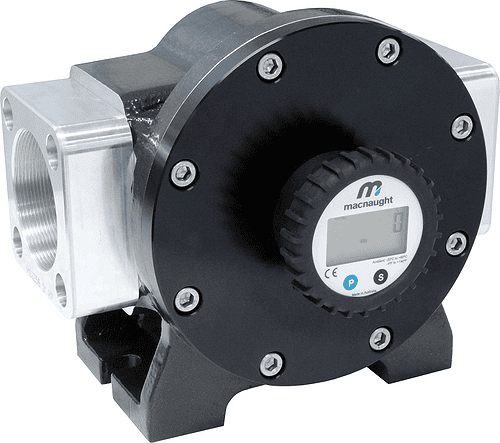

3" Flowmeter, 5-317 GPM, 175PSI, Alum/Alum/FKM/FNPT w/Integral Display, No Output
The MX Series 3" DIGITAL FLOW METER are suitable for flows between 20 - 733 L/min (5.28 - 193.64 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
Key features include:
- Aluminium (6061) construction
- FKM (Viton) seals
- Maximum flow rate 733 L/min / 193.64 GPM
- Accuracy of ±±0.5% of reading
- Exceptional repeatability of ±±0.03%
- Temperature up to 120 °C / 248 °F
- 1 point factory calibration as standard, with additional points upon request
Non-returnable
Out of stock
TTD120,295.00
Share:
Product Details
Specifications
| MX75F-2SD | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material of construction | Aluminium (6061)Aluminium (6061)FKM (Viton) | ||||||||||||||||||||||||||||||
Design Specifications | 3" NPT Thread | ||||||||||||||||||||||||||||||
Technical Specifications |
| ||||||||||||||||||||||||||||||
| ±0.5%±0.03%2.58 Pulses/Litre9.77 Pulses/Gallon |
| PR [LCD 12mm display] | |
|---|---|
Construction | Polypropylene |
IP Rating | IP67 |
Temp | Min: -20 Max: 60 °CMin: -4 Max: 140 °F |
EX Approvals | -Please refer to instruction manual and certification documentation for product appropriate certification information |
Display | 12mm/8mmYESYESNOYES |
Outputs | NONONONO |
